P1354AW - Hinged Seismic Brace Fitting (for Strut)
The P1354AW is an adjustable angle fitting for use primarily with seismic braces. This fitting can be used to attach a strut brace to a trapeze, anchor point, strut, or other connection.
The P1354AW fitting has welded is pre-approved for the below seismic loads on page 5c.1 of Unistrut's OPM-0295-13.
This product is similar to the P1354A, but includes welds to increase the load capacities.
The P1354AW fitting has welded is pre-approved for the below seismic loads on page 5c.1 of Unistrut's OPM-0295-13.
This product is similar to the P1354A, but includes welds to increase the load capacities.
| Part No. | Finish | Product Weight / Piece (lbs) |
|---|---|---|
| P1354AW | EG | 1.09 |

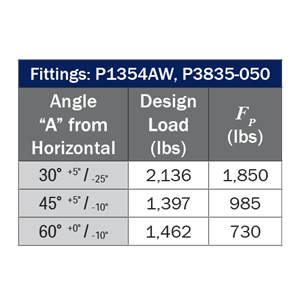

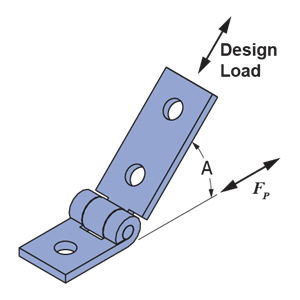

Seismic Design Loads
Notes:
- Seismic Design Loads only apply to UNISTRUT brand products. Look for "UNISTRUT" on the part.
- Seismic Design Loads are based on FM1950-10 dynamic testing with 12 ga. channel and a safety factor of 1.5.
- 1/2" Unistrut Channel Nut and Cap Screw torqued to 50 ft-lbs required for installation.
- Seismic Design Loads apply only to the P1354AW EG fitting. The "W" in the part number designates that the hinge has welds to increase strength.
- Reference page 5c.1 of Unistrut OPM-0295-13.
General Specifications
Standard Dimensions (Unless Shown Otherwise on Drawing):
- Hole Diameter: 9/16" (14mm)
- Hole Spacing (From End): 13/16" (21mm)
- Hole Spacing (On-Center): 1 7/8" (48mm)
- Width: 1 5/8" (41mm)
- Thickness:
- 1/4" (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
- 0.220" (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45
Note:
- When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.
Materials & Finishes
Materials & Finishes:
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1 or SC3
